Biljax 45XA Self Propelled
45' Articulated Boom Lift

We rent the Biljax 45XA Boom Lift. Please note this video may show others models as well.

Robinsons is pleased to offer the Biljax 45XA Boom lift for rental.

The 45XA X-Boom is an articulating self-propelled boom lift that
has a 51 ft working height and 27 ft of maximum outreach.
It offers 48% gradeability, 3.5-mph drive speed and four
wheel-drive capability. The unit weighs 4,800 pounds


Parking lot maintenance is easy with our cherry picker rental

Hydraulic outriggers have replaced the heavy counterweights
found on conventional self-propelled machines and set-up
is complete in less than 30 seconds.

The material lift attachment allows the 45XA to be used
as a light-duty crane with up to a 500 pound capacity.


With our Boom Lift Rentals, transport and use is easy. Delivery Service is also available.

It delivers the power and performance you need to get your job done.

This is a user-friendly, easy to use articulated boom lift
that offers a 60" x 30" platform. The boom lift has an
8' 8" wheel base, a 9" Ground clearance and a
12' 2" x 11' 4" footprint with the outriggers down.

The Bil-jax 45XA Booms can go where all other self-propelled booms
have not been able to. They are perfect for applications on
lawns or someplace with a sensitive flooring.


Our boom lift is like a bucket truck rental and is great for

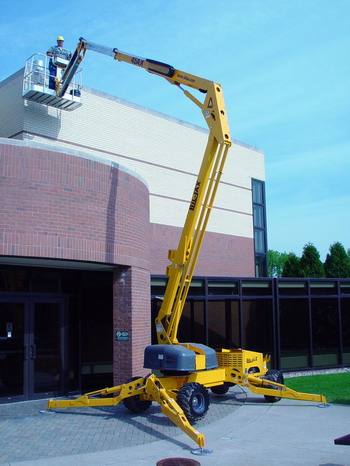

tree work and building maintenance

Specifications
Working height: 51'
Platform height: 45'
Horizontal outreach (from centerline): 27'
Horizontal outreach (from edge of footpad): 21'
Up and over height: 20' 9"
Lift capacity: 500 lbs.
Length, stowed: 18' 3"
Width, stowed: 5' 6"
Height, stowed: 6' 6"
Wheelbase: 8' 9"
Ground Clearance: 9"
Platform size: 5' x 2' 6"
Outrigger footprint: 12' 2" x 11' 4"
Turntable operation: 700 degrees, non-continuous
Jib length: 4' 3"
Jib vertical motion: 150 degrees (+70 / -80)
Drive Speed: 3.5 mph (max)
Gradeability: 48%
Turning radius (inside): 10'
Turning radius (outside): 17' 6"
Tire size: 26 x 12 Bar Lug
Engine: 21 HP Gas
Batteries: 4 x 6V 245 Amp-hr
Weight: 4800 lbs.

Manufacturers Spec Sheet
Operators Manual

Robinsons Hardware & Rental in Hudson, MA and Framingham, MA is proud
to offer Haulotte Bil-jax 45XA Articulated Boom Lift rentals.
