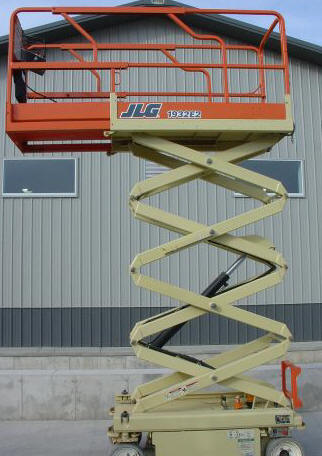

19' platform height gives you a 25' working height!
|
|
110V-AC Receptacle in Platform
|
|
3 ft. (91 cm) Roll-Out Deck Extension
|
|
Moveable, Removable Platform Console Box
|
|
Lanyard Attach Points
|
|
Three Speed Joystick Drive Control with Thumb Steer
|
|
Positive Traction
|
|
Lubrication Free Scissor Arm Bushings
|
|
Scissor Maintenance Prop
|
|
Manual Descent Pull Cable
|
|
Swing-Out Battery and Hydraulic Compartment Doors
|
|
20 Amp Automatic SCR Battery Charger
|
|
Pot-Hole Protection
|
|
Lifting/Tie Down Lugs
|
|
Fork Lift Pockets
|
|
Descent Alarm
|
Specifications
DIMENSIONAL DATA
A. Platform Height- Elevated: 19 ft.
B. Platform Height - Lowered: 3 ft. 3 in.C.
Platform Railing Height: 3 ft. 3 in.
D. Overall Height; 6 ft. 7.5 in.
E. Platform Size: 31 x 64 in.
F. Platform Extension: 3 ft.
G. Overall Width: 2 ft. 8 in.
H. Overall Length: 5 ft. 8.5 in.
I. Wheelbase: 4 ft. 4 in.
J. Ground Clearance: 2.75 in.Platform Capacity:
500 lbs.
Capacity on Platform Extension: 250 lbs.
Lift/Lower Time: 27/26 sec.
Maximum Drive Height: Full HeightGross Vehicle
Weight: 2,620 lbs.
CHASSIS
Drive Speed - Lowered: 2.5 mph
Drive Speed - Elevated: 0.5 mph
Gradeability: 25%
Turning Radius (Inside): 6 in.
Turning Radius (Outside): 68 in.
Tire Size/Type: 12.5 x 4 Non-Marking Solid
Brakes: Automatic Rear Wheel Parking
POWER SOURCE
Batteries: 4 x 6V 220 amp-hr
Charger: 20 Amp Automatic SCR 120/250V, 50/60HZ
Electric Motor: 3.5 hp (2.6 kW)Pump: Single
Section Gear
Hydraulic Reservoir: 3 gal. (11.4 L)
