Equipment
Trailers
Rental Price List

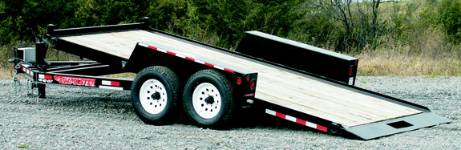

4 Ton Equipment Trailers
| WEIGHT |
3,600
lbs |
|
LOAD CAPACITY |
8,000
lbs. (5443kg) with adequate hitch load |
| DECK LENGTH |
16'-0" |
| DECK HEIGHT |
21
1/2" empty |
| OVER-ALL WIDTH |
8'-6" |
| LOAD WIDTH |
82" |
| TONGUE LENGTH |
5'-0" |
| TILT ANGLE(S) |
11
degrees |
| TILT CUSHION |
(1)
3 1/2 x 8 cushion cylinder |
| DECK TYPE |
2"
nominal oak, screwed down |
| BRAKES |
electric,
with wet cell break-a-way (12" x 2") |
| TIRES |
(4)
235/85R x 16, 10 ply, load range "E" |
| WHEELS |
(4)
6" x 16" white modular (6 bolt on 5 1/2" b.c,) |
| AXLES |
(2)
6,000 lb. Torflex, with E-Z lube hubs |
| HITCH |
Pintle
Ring |
| TIE DOWNS |
(6)
heavy duty 3/4" forged D-rings |
| PARKING JACK |
(1)
12,000 lb. drop leg (bolted on) |
| SAFETY CHAINS |
3/8"
x 40" long with safety hooks and latches |
| MAIN FRAME |
high
tensile W6 x 12 beam (one pc. cold formed) |
| HEAD BOARD |
4"
(102mm) high |
| X-MEMBERS |
3"
channel iron, 16" (406mm) o.c. |
| WIRING |
sealed
modular harness with circuit breakers |
| LIGHTING |
sealed
beam, flush/shock mounted (reflectorized) |

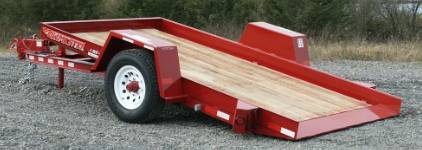

1.5 Ton Equipment Trailers
| WEIGHT |
1,950
lbs. |
|
LOAD CAPACITY |
3,000
lbs. with adequate hitch load |
| DECK LENGTH(S) |
12'-0" |
| DECK HEIGHT |
15.5"
empty |
| OVER-ALL WIDTH |
8'-6" |
| LOAD WIDTH |
77" |
| TONGUE LENGTH |
5'-0" |
| TILT ANGLE(S) |
11
degrees |
| DECK TYPE |
2"
nominal oak |
| BRAKES |
electric,
with wet cell break-a-way system (12" x 2") |
| TIRES |
(2)
ST225/75R x 15, load range "D" |
| WHEELS |
(2)
6" x 15" white modular (6 bolt on 5 1/2" b.c.) |
| AXLE |
(1)
6,000 lb., Torflex, with E-Z lube hubs |
| HITCH |
Pintle
Hitch |
| TIE DOWNS |
(6)
heavy duty 3/4" forged D-rings |
| PARKING JACK |
(1)
7,000 lb. drop leg (bolted on) |
| SAFETY CHAINS |
3/8"
x 40" long with safety hooks and latches |
| SIDE RAILS |
7"
(178mm) high |
| MAIN FRAME |
high
tensile M4 x 13 wide flange beam |
| HEAD BOARD |
7"
(178mm) high, channel iron |
| X-MEMBERS |
high
tensile 3" jr. I-beam, 16" (406mm) o.c. |
| WIRING |
sealed
modular harness with circuit breakers |
| LIGHTING |
sealed
beam, flush/shock mounted (reflectorized) |
Mini Loader Trailer
Empty
Weight:.
2,520 lbs.
Axle
Capacity:
6,000 lbs.
Load
Capacity:
3,480 lbs.
Main Frame:
6" x 4" x 5/16"
Angle
Crossmembers:
3" Channel @ 4.1#
Tongue:
5" Channel @ 6.7#
Brakes:
Electric
Tire Size:
LRD
225/75R15
Deck Height:
20"
Width
Overall/Usable:
102"/82.5"
